High-Throughput Plasma Cleaning System RPB-170
  • High-Throughput Plasma Cleaning System RPB-170

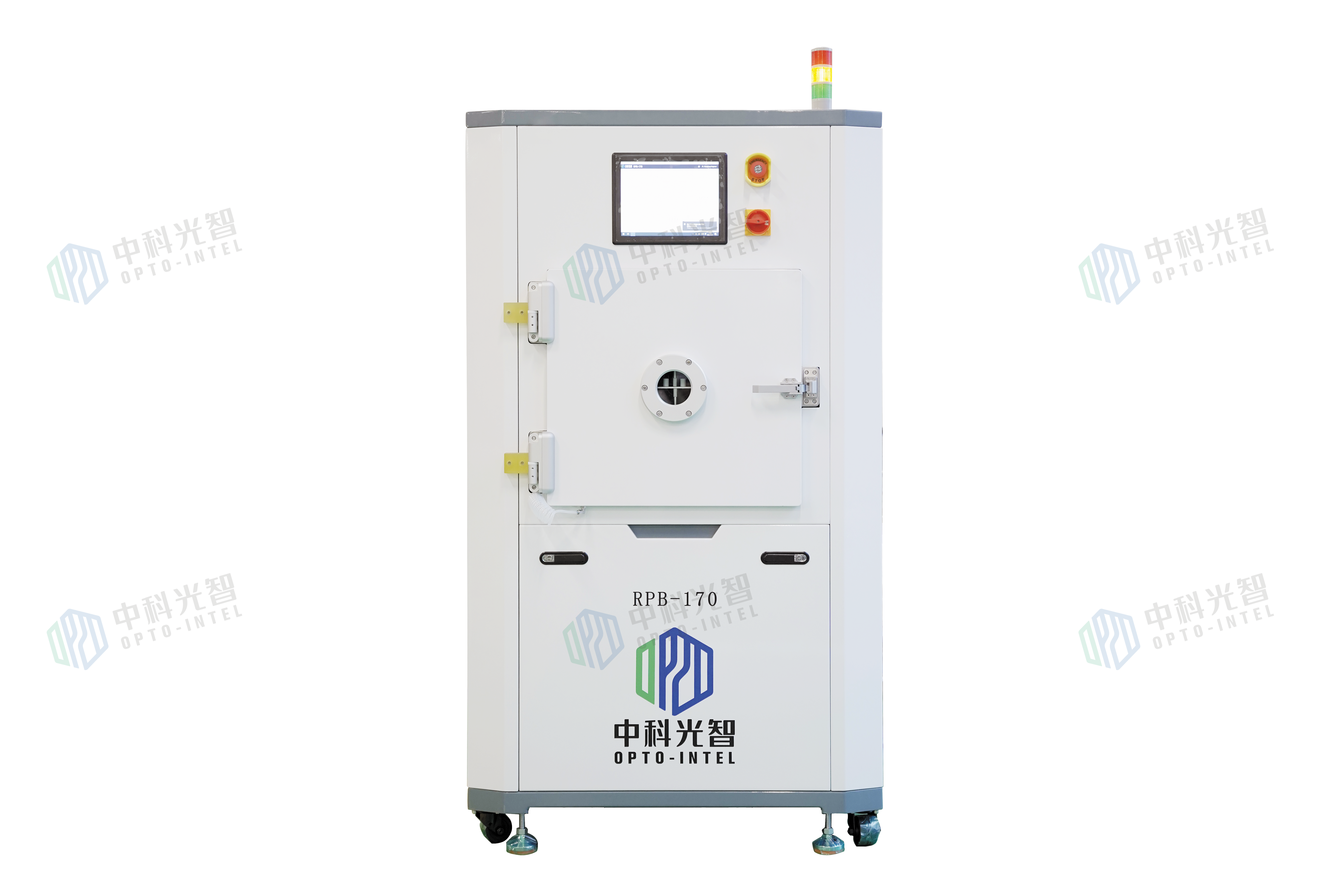

High-Throughput Plasma Cleaning System RPB-170

ApplicationsThe system is perfectly used for cleaning and surface activation prior to semiconductor packaging process such as

Applications

The system is perfectly used for cleaning and surface activation prior to semiconductor packaging process such as die bonding, wire bonding, underfill, molding, capable to effectively remove the surface contaminants of organics and oxides from the packaging materials, excellently enhancing the bonding strength and adhesion performance, thus significantly improving the process yield. The system possesses a large-capacity chamber and advancedly-designed electrodes, combing high-uniformity cleaning and production efficiency.


Features

Outstanding clean result & reliable performance

High capacity: Max 16 magazines loading capacity

Superior vacuum performance with oil pump + booster pump

Slim structure with pump built-in

Advanced electrode design & excellent uniformity

Intuitive graphical user interface


Specifications

Plasma Frequency

13.56MHz (radio frequency)

Plasma Power

Standard 600W (1000W as option)

Electrodes Number

2

Chamber Size

W580mm x D580mm x H530mm (Approx. 170L)

Chamber Capacity

Max. 16 magazines

Vacuum Pump

Oil pump with booster pump, built-in type

Chamber Vacuum

Better than 5Pa

Vacuum Gauge

Pirani or capacitance manometer

Mass Flow Controllers

One as standard (Max three optional), flow rate 100sccm

Control System

Windows based touchscreen IPC + PLC control, supporting manual and automatic operation, process recipe program editing/storage/execution, and automatic process data recording and display. Supports MES system.

Enclosure Dimension

W1200mm x D1000mm x H1850mm (tower lamp excluded)

Weight

Approx. 800Kg

Power Supply

380V, 3P+N+PE, 50Hz, 6kW

Vent Gas

N2, 0.1-0.15MPa

Process Gas

Ar, Ar/H2 forming gas, O2, etc., 0.15-0.2MPa

CDA

0.5-0.6MPa
